Name: High Hardness Spot Welding Machining Customized Silicon Nitride Ceramic Welding Guide Pin
Brand: BLOOM(suzhou) Materials Co.,Ltd
SKU: CRPN - 8p
Price: 701.00 USD
Availability: InStock

Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi

Özellikleri

Teknik Özellikler

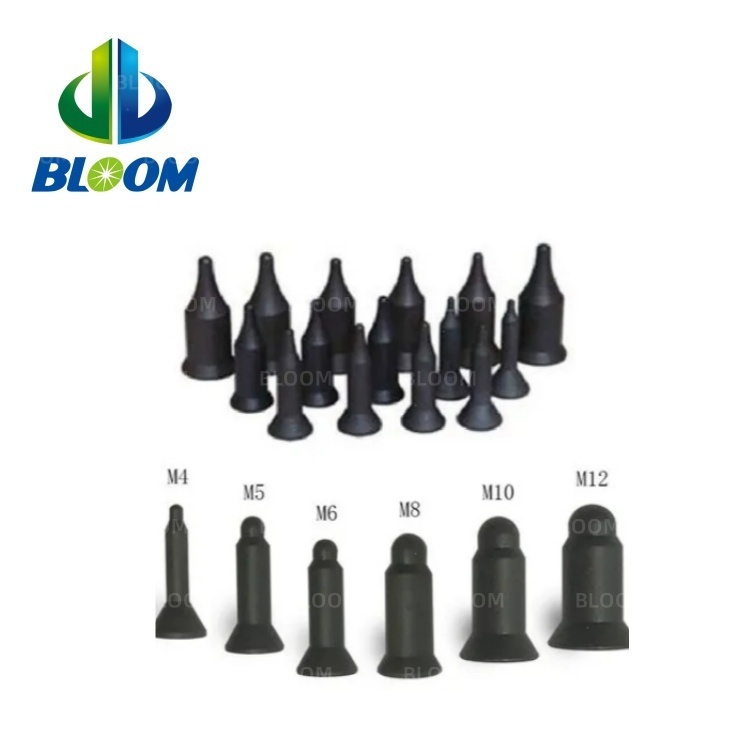

Boyut: M6/M8/M10/M12 veya özelleştirme

Tip: Kılavuz pim

Başvuru: Direnç Kaynağı, Direnç Kaynak Endüstrisi

Teslimat: Müşterilerin gereksinimlerine ve miktarına bağlı olarak 7-10 gün

Fiyat süresi: Eski çalışma, FOB, CNF, CFR, CIF, FCA, DDP, DDU

Malzeme: Seramik Kaplamalı

Standart: ASTM, ASTM GB

Vurgulamak:

customized silicon nitride ceramic guide pin

high hardness welding guide pin

spot welding machining ceramic pin

Temel bilgiler

Menşe yeri: Jiangsu, Çin (Anakara)

Marka adı: BLM

Model numarası: CRPN - 8p

Ödeme & teslimat koşulları

Ambalaj bilgileri: Düzenlemelere ve müşterinin isteklerine göre paketlenmiş ve etiketlenmiştir. Depolama veya ulaşım sı

Teslim süresi: Müşterilerin ihtiyacına ve miktarına bağlı olarak 5-10 gün

Ödeme koşulları: Western Union, L/C, T/T

Yetenek temini: Ayda 20000 adet/adet

Fotoğraf Galerisi

High Hardness Spot Welding Machining Customized Silicon Nitride Ceramic Welding Guide Pin

Ürün Açıklaması

High Hardness Spot Welding Machining Customized Silicon Nitride Ceramic Welding Guide Pin

A silicon nitride pin typically refers to a small cylindrical component made from silicon nitride ceramic material. Silicon nitride is a type of advanced ceramic that exhibits excellent mechanical and thermal properties, such as high strength, hardness, wear resistance, and thermal stability.

Silicon nitride pins are commonly used in industrial applications where durability, precision, and non-magnetic properties are required. For example, they can be used as positioning pins or locating pins in electronic devices, as cutting tools for machining high-temperature alloys, or as components in bearings and seals for use in harsh environments.

In the paper industry, silicon nitride pins could potentially be used in various applications, such as in rollers or guide pins in paper processing equipment. They could help reduce wear and minimize downtime due to maintenance and replacement needs.

Properties

Item	Unit	Silicin Nitride GPSN
Main Content	-	Si3N4 > 95%
Color	-	Black
Density	g/cm³	3.22
Vickers Hardness	Gpa	15
Flexural Strength	Mpa	580
Compressive Strength	Mpa	2200
Electrical Resistivity	Ω.cm	> 10^12
Dielectric Strength	KV/mm	19
Dielectric Constant	1 MHz	9.6
Themal Conductivity	W/m.k	27
Max working Temperature	℃	1200
Resistance to Thermal Shock	△T(°C)	750
Thermal Expansion Coefficient (25-1000℃)	10^-6K^-1	3-4

The Advantage of Si3N4 Silicon Nitride Ceramic Pins

High Strength and Durability: Silicon nitride pins are known for their high strength and durability. They can withstand high temperatures, corrosive environments, and extreme pressure without breaking or degrading, making them ideal for use in harsh industrial applications.
Wear Resistance: Silicon nitride pins are highly wear-resistant due to their hardness and toughness. They can resist abrasive and erosive forces, making them ideal for use in machinery and equipment that experience heavy wear and tear.
Chemical Inertness: Silicon nitride is chemically inert, meaning it does not react with most chemicals. It makes it suitable for use in chemical processing and handling operations where the pins may need to come into contact with various chemicals.
Electrical Insulation: Silicon nitride is an excellent electrical insulator, making it useful in electronic and semiconductor industries.
Thermal Shock Resistance: Silicon nitride pins are resistant to thermal shock, which means they can withstand sudden temperature changes without breaking or cracking, making them ideal for use in high-temperature environments.

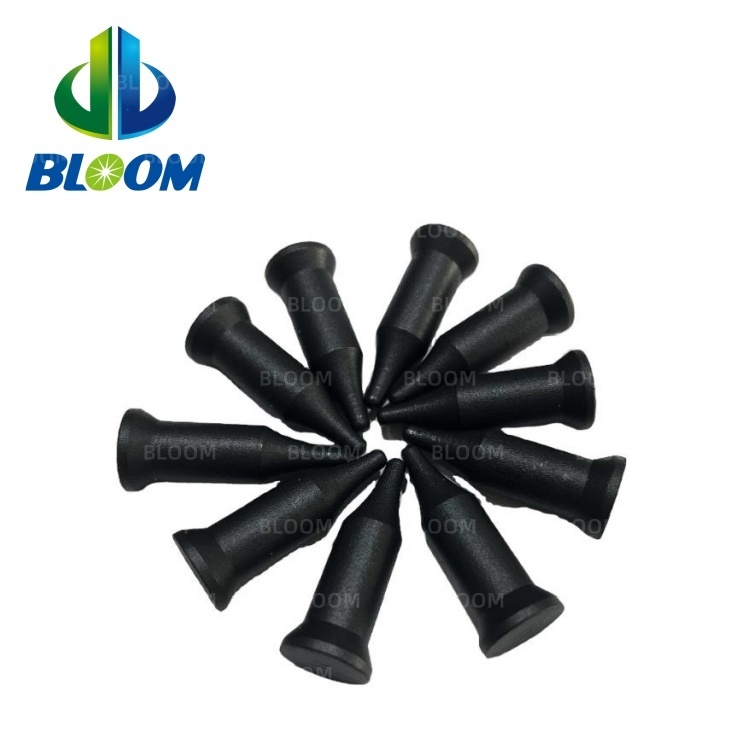

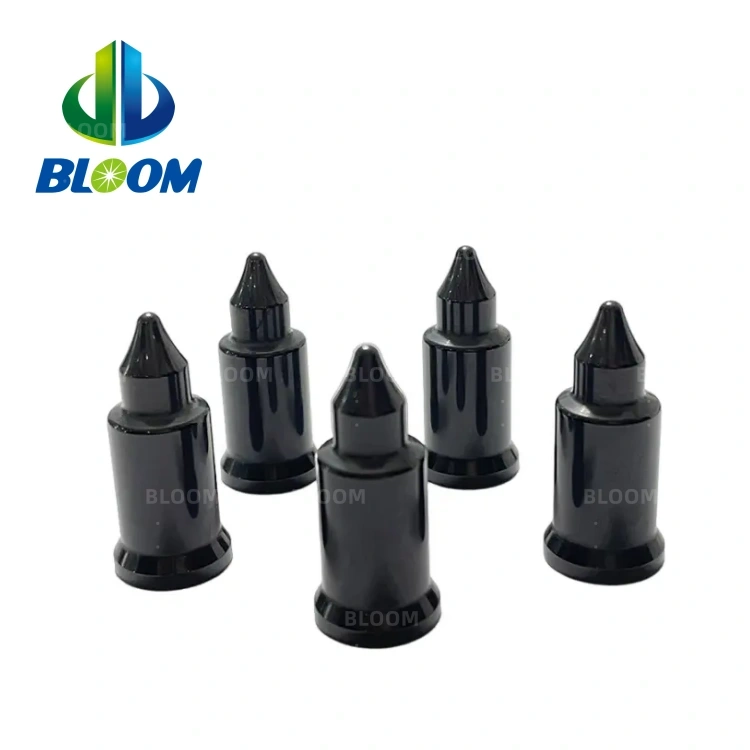

Product Images
